A planetary gearbox is an industrial device designed to reduce motor speed while increasing transmitted torque. This system is based on a planetary gear system, also known as an epicyclic gearbox, which consists of a central sun gear that drives multiple planet gears rotating around it.
This compact gearbox design allows the planetary gearbox to handle high torque loads efficiently, making it ideal for a wide range of industrial applications.
A planetary gearbox reduces motor speed and increases torque through an integrated gear system that distributes the energy generated by the motor.The sun gear is the core component of the planetary gear set. Positioned at the center, it receives power from the motor via the input shaft. As it rotates, it transfers motion to the surrounding planet gears, which orbit around it.
The ring gear, which encircles the entire gear set, can remain stationary or rotate depending on the configuration. It controls the direction and rate of speed reduction.
As the sun gear rotates, the planet gears move within the ring gear, creating the speed reduction effect while increasing output torque.
One of the key advantages of a planetary gearbox is its superior load distribution. Instead of a single gear carrying the full motor load, the torque is shared among multiple planet gears. This load sharing results in higher torque capacity, improved durability, and exceptional torque density.
Thanks to its compact design, a planetary gear reducer is ideal for applications where space is limited but high torque is required.
The planetary gearbox is composed of three types of gears: sun, planetary, and ring. It also includes a carrier, which is the component that holds the planetary gears in position.
Understand how each of these components operates within this system:
The sun gear is located at the center of the planetary gear set and receives power from the motor. It acts as the primary input element of the system.
The planet gears are smaller gears that orbit around the sun gear. They are mounted on the planet carrier and rotate on their own axes while revolving around the center.
The ring gear is the internal gear with inward-facing gear teeth that surrounds the system. In most configurations, it remains stationary and controls the reduction ratio.
The planet carrier supports the planet gears and connects to the output shaft, transmitting the amplified torque to the driven equipment.
Unlike conventional speed reducers, a planetary gearbox uses a configuration in which multiple gears rotate around a central sun gear. This arrangement allows torque transmission in a significantly more compact gearbox structure. Because of this, planetary gear systems are preferred for applications with space constraints and demanding torque requirements.

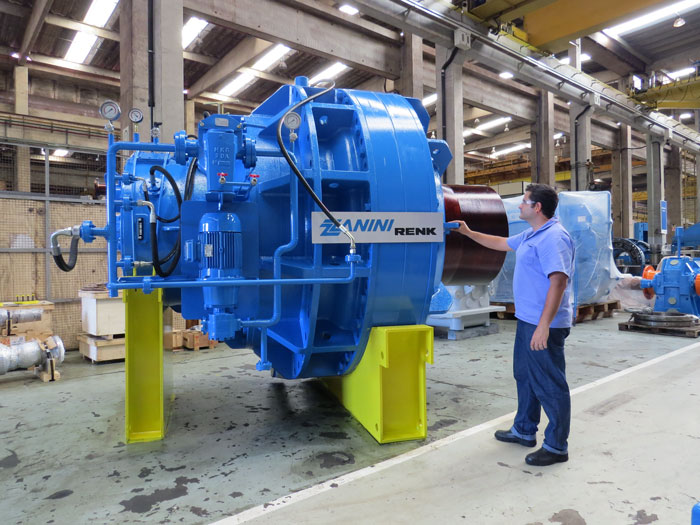

Planetary gearboxes are used in applications that require high efficiency, compact size, and high torque performance.
Typical industrial applications include:
They are also widely used in:
A proper maintenance plan ensures higher performance and extended service life for an industrial planetary gearbox. By keeping the system in optimal condition, companies can prevent unexpected downtime, reduce emergency repair costs, and increase operational reliability.
The longevity of a planetary gearbox depends directly on preventive maintenance and predictive maintenance strategies.
Predictive maintenance uses advanced monitoring tools to identify the optimal time for intervention before failure occurs. Preventive maintenance focuses on minimizing severe damage through scheduled inspections and servicing.
Together, these strategies increase gearbox lifespan and reduce losses caused by unplanned shutdowns.

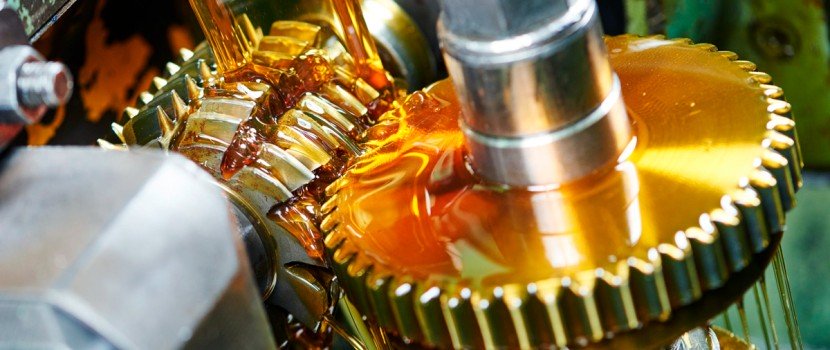

Lubrication is a critical factor in planetary gearbox performance. Due to continuous gear movement, rolling and sliding surfaces are subject to friction, which can cause premature wear. Proper lubricants reduce friction, ensure smooth operation, and minimize noise and vibration.
An efficient lubrication system also supports heat dissipation, preventing overheating during continuous duty and heavy-duty operation.
To significantly reduce maintenance costs of planetary gear reducers, it is essential to choose high-quality equipment manufactured with advanced engineering.
The Revolution planetary gearbox by Zanini Renk was developed to solve the most common challenges in planetary gear systems, including:
The Revolution represents state-of-the-art planetary gearbox technology. Combining innovative engineering, modern design, reduced size and weight, and superior strength, it delivers exceptional operational flexibility, high efficiency, and outstanding torque density (199.7 Nm/kg) ensuring superior performance and lower maintenance costs.
Zanini Renk is a national reference in planetary gearbox manufacturing, delivering advanced technology and high reliability for diverse industrial sectors. Our products are designed to overcome operational challenges, providing high efficiency, durability, and consistent performance.
The Revolution planetary gearbox is the lightest and most compact solution on the market, developed with a focus on technological innovation and energy efficiency.
Learn more about the revolution planetary gearbox.
Today, more than 90% of sugar mills operating with cane diffusers rely on Zanini Renk planetary gearboxes. Our solutions for sugarcane diffusers are synonymous with reliability and high torque performance.
Learn more about the planetary gearbox for diffusers
